Electro-hydraulic servo systems
Author: admin Viewed: 21151【Close】
2017-04-27 09:24:37

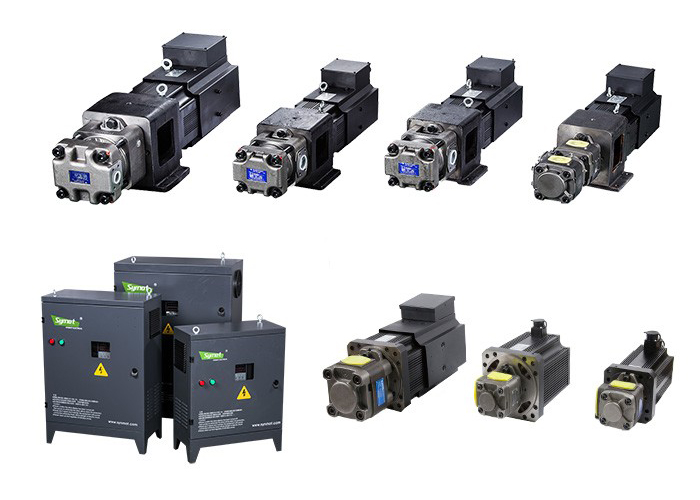

Synmot electro-hydraulic servo systems are highly integrated systems, with the perfect matching of pumps, motors and drives. It can achieve precise flow and pressure control, and the dynamic response is fast. Synmot electro-hydraulic servo systems support multi pump confluence control, with excellent energy-saving performance and simple maintenance.
Synmot servo system configuration examples
【V2.0】Model
System
flowSystem
pressureMatching
machineRated torque
of motorPump
outletServo motor
ModelServo drive
Model（L/min）
（Mpa)
(N.m)
(cc/r)
SM-0060M0045H-111
53
16
60T
48
25
SM-190H75C15C-Rn21F
SM22-75CC-0RC
SM-0090M0067Q-121
67
16
90T
70
31.5
SM-190H11D15C-Rn21F
SM22-11DC-0RC
SM-0120M0084Q-121
84
16
120T
70
40
SM-200H13D17C-Rn21F
SM22-15DC-0RC
SM-0160M0105Q-122
105
16
160T
96
50
SM-200H17D17C-Rn21F
SM22-22DC-0RC
SM-0200M0132Q-121
132
16
200T
118
63
SM-200H21D17C-Rn21F
SM22-37DC-0RC
SM-0260M0168Q-111
160
16
260T
140
80
SM-200H25D17C-Rn21F
SM22-30DC-0RC
SM-0300M0210Q-121
200
16
300T
210
100
SM-260H34D17C-Rn21F
SM22-37DC-0RC
SM-0360M0231Q-111
250
16
360T
265
125
SM-260H42D17C-Rn21F
SM22-45DC-0RC
-
servo system
