200mm(8KW-37KW)
Author: admin Viewed: 7588【Close】
2017-04-25 15:10:22

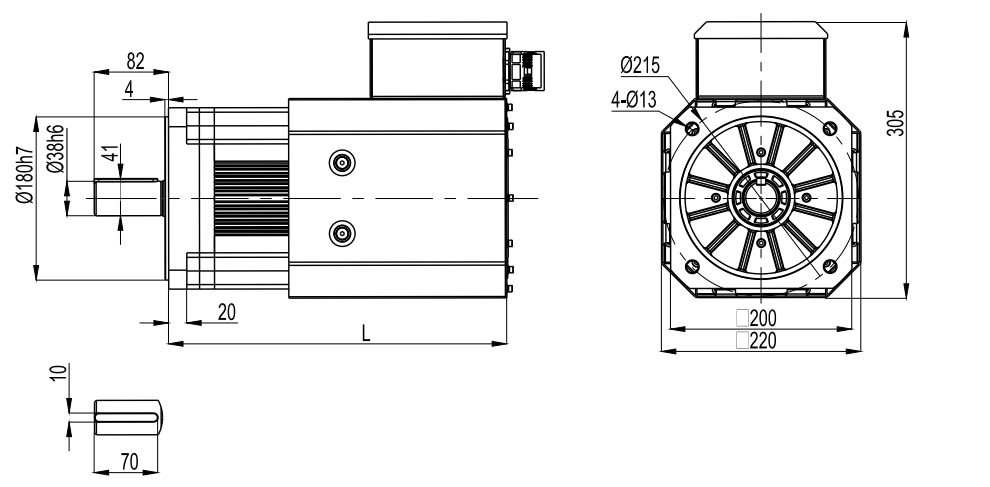

UNITE:MM
Flame size 200mm Model
Rated
torqueRated
voltageRated
speedRated
powerRated
currentKt
Ke
Max.
speedMax.
torqueRoter
inertiaPoles
Weight
L
LengthN.m
Vac
rpm
kW
A
N.m/A
V/krpm
rpm
N.m
Kg.cm²
Poles
Kg
mm
200H75C15C
50
380
1500
8
17
3.2
200
2000
150
112
8
30
336
200H90C17C
50
380
1700
9
20
2.8
172
2210
150
112
8
30
336
200H11D20C
50
380
2000
11
23
2.4
150
2500
150
112
8
30
336
200H11D15C
70
380
1500
11
23
3.3
203
2000
210
163
8
44
373
200H13D17C
70
380
1700
13
26
2.9
182
2210
210
163
8
44
373
200H15D20C
70
380
2000
15
32
2.4
150
2500
210
163
8
44
373
200H15D15C
96
380
1500
15
33
3.2
200
2000
288
213
8
53
410
200H17D17C
96
380
1700
17
36
3.0
185
2210
288
213
8
53
410
200H20D20C
96
380
2000
20
41
2.5
157
2500
288
213
8
53
410
200H18D15C
118
380
1500
18
39
3.3
205
2000
354
264
8
61
447
200H21D17C
118
380
1700
21
45
2.9
178
2210
354
264
8
61
447
200H25D20C
118
380
2000
25
53
2.5
152
2500
354
264
8
61
447
200H22D15C
140
380
1500
22
47
3.3
203
2000
420
314
8
69
484
200H25D17C
140
380
1700
25
52
2.9
182
2210
420
314
8
69
484
200H29D20C
140
380
2000
29
59
2.6
160
2500
420
314
8
69
484
200H25D15C
157
380
1500
25
49
3.5
211
2000
471
314
8
70
484
200H28D17C
157
380
1700
28
55
3.1
189
2210
471
314
8
70
484
200H33D20C
157
380
2000
33
66
3.5
156
2500
471
314
8
70
484
200H18D10C 176 380 1000 18 36 5.4 324 1500 528 365 8 77 521 200H28D15C 176 380 1500 28 53 3.6 220 2000 528 365 8 77 521 200H31D17C 176 380 1700 31 60 3.2 194 2210 528 365 8 77 521 200H37D20C
176 380 2000 37 69 2.8 168 2500 528 365 8 77 521 Motor insulation: class-H; Thermal protection: PTC100 with KTY optional; Protection grade: IP65 except fan cover Wiring method: Plug or terminal box; Cooling method: Fan cooling; Fan voltage: 220V; Working standard: long-term,S1 【V2.0】
