Products listOil cooling servo motors

360mm(75KW-140KW)

Author: admin Viewed: 4434【Close】

2017-04-25 14:27:48

  • UNITE:MM

  • Flame size 360mm (liquid cooling)

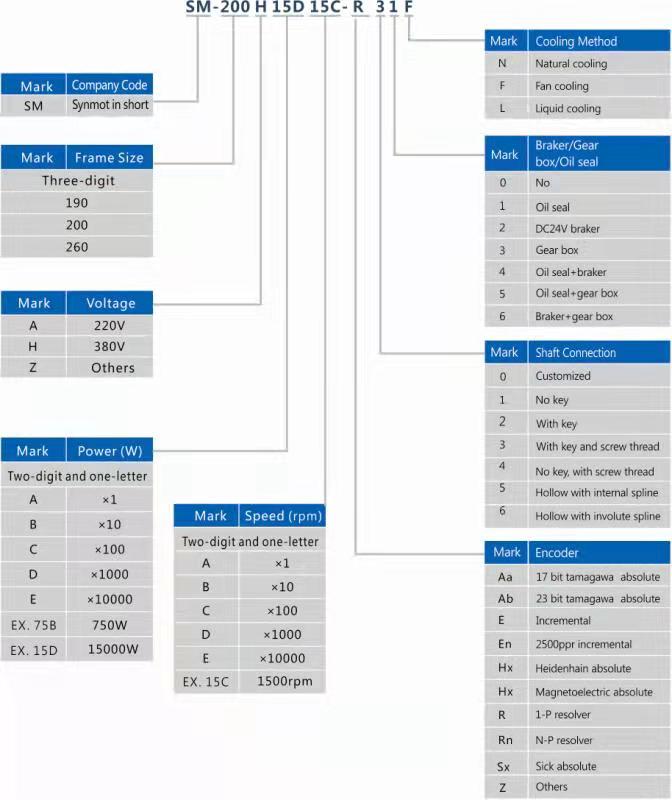

    Model

    Rated
     torque

    Rated
     voltage

    Rated
     speed

    Rated
     power

    Rated
     current

    Kt

    Ke

    Max.
    speed

    Max.
    torque

    Roter
     inertia

    Poles

    Weight

    L
     Length

    N.m

    Vac

    rpm

    kW

    A

    N.m/A

    V/krpm

    rpm

    N.m

    Kg.cm²

    Poles

    Kg

    mm

    360H75D15C

    480

    380

    1500

    75

    174

    3.1

    187

    2000

    1440

    1982

    8

    228

    509

    360H90D15C

    575

    380

    1500

    90

    201

    3.2

    194

    2000

    1725

    2356

    8

    250

    559

    360H11E15C

    700

    380

    1500

    110

    255

    3.1

    187

    2000

    2100

    2729

    8

    272

    609

    360H14E15C

    900

    380

    1500

    141

    328

    3.1

    186

    2000

    2700

    3476

    8

    317

    709

    Motor insulation: class-H; Thermal protection: PTC100 with KTY optional; Protection grade: IP65 except terminal box;
    Wiring method: Terminal  box; Cooling method: liquid cooling; Working standard: long-term, S1     【V2.0】
