Products listDirect-driven servo motors

300mm (37KW-92KW)

Author: admin Viewed: 5532【Close】

2017-08-22 11:04:35

  •

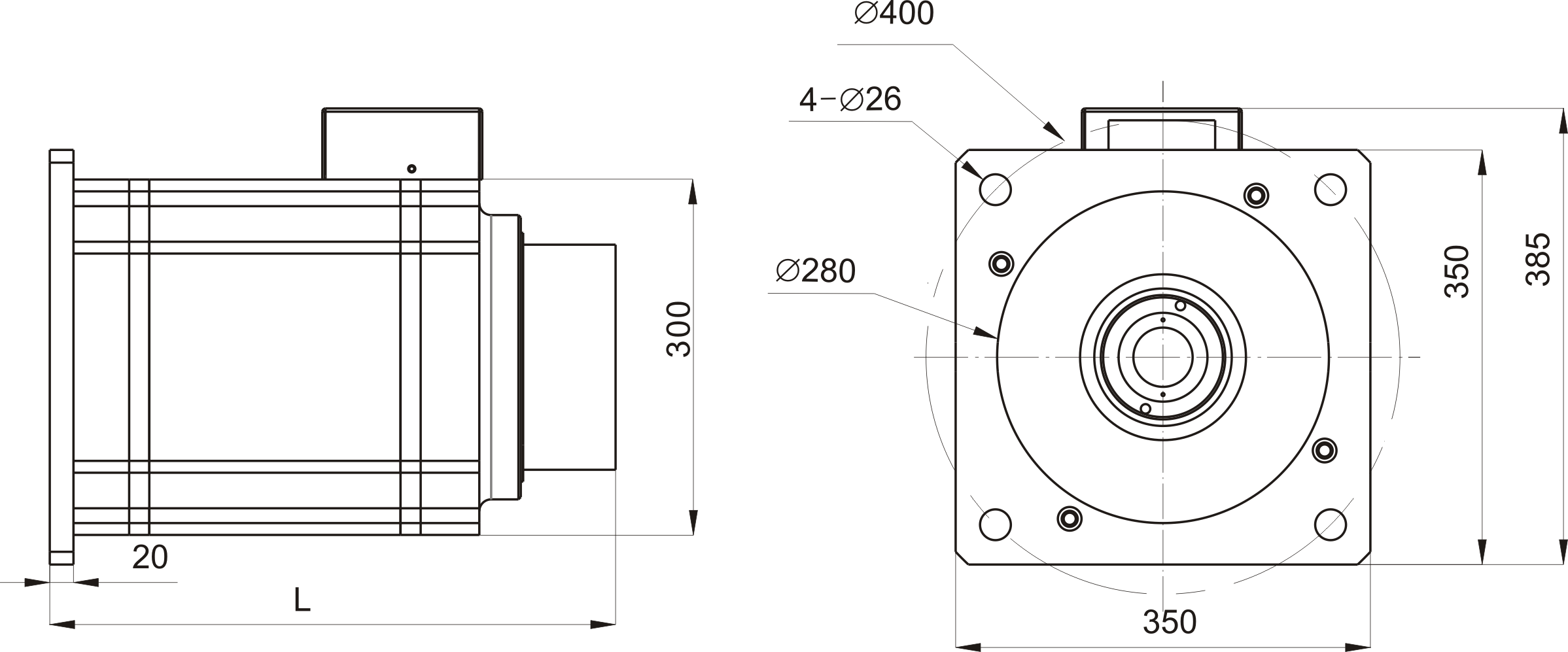

    UNITE:MM


  • Flame size 300mm (Direct driven low speed fan cooling)

    Model

    Rated
      torque

    Rated
      voltage

    Rated
      speed

    Rated
      power

    Rated
      current

    Kt

    Ke

    Max.
     speed

    Max.
     torque

    Roter
      inertia

    Poles

    Weight

    L
      Length

    N.m

    Vac

    rpm

    kW

    A

    N.m/A

    V/krpm

    rpm

    N.m

    Kg.cm²

    Poles

    Kg

    mm

    SM300H37D35B

    1000

    380

    350

    37

    91.0

    12.2

    740

    400

    3000

    2060

    20

    133

    475

    SM300H55D35B

    1500

    380

    350

    55

    136.0

    12.2

    740

    400

    4500

    3010

    20

    180

    580

    SM300H92D35B

    2500

    380

    350

    92

    214.0

    12.2

    740

    400

    7500

    5000

    20

    245

    780

    Motor insulation: class-H; Thermal protection: PTC100 with KTY optional; Protection grade: IP65 except terminal box;

    Wiring method: terminal box; Cooling method: liquid cooling; Working standard: long-time, S1     【V2.0】




  • 300,350mm servo motor (direct driven))
