Products listDirect-driven servo motors

360mm(37KW-55KW)

Author: admin Viewed: 5299【Close】

2017-08-22 11:08:03

  •

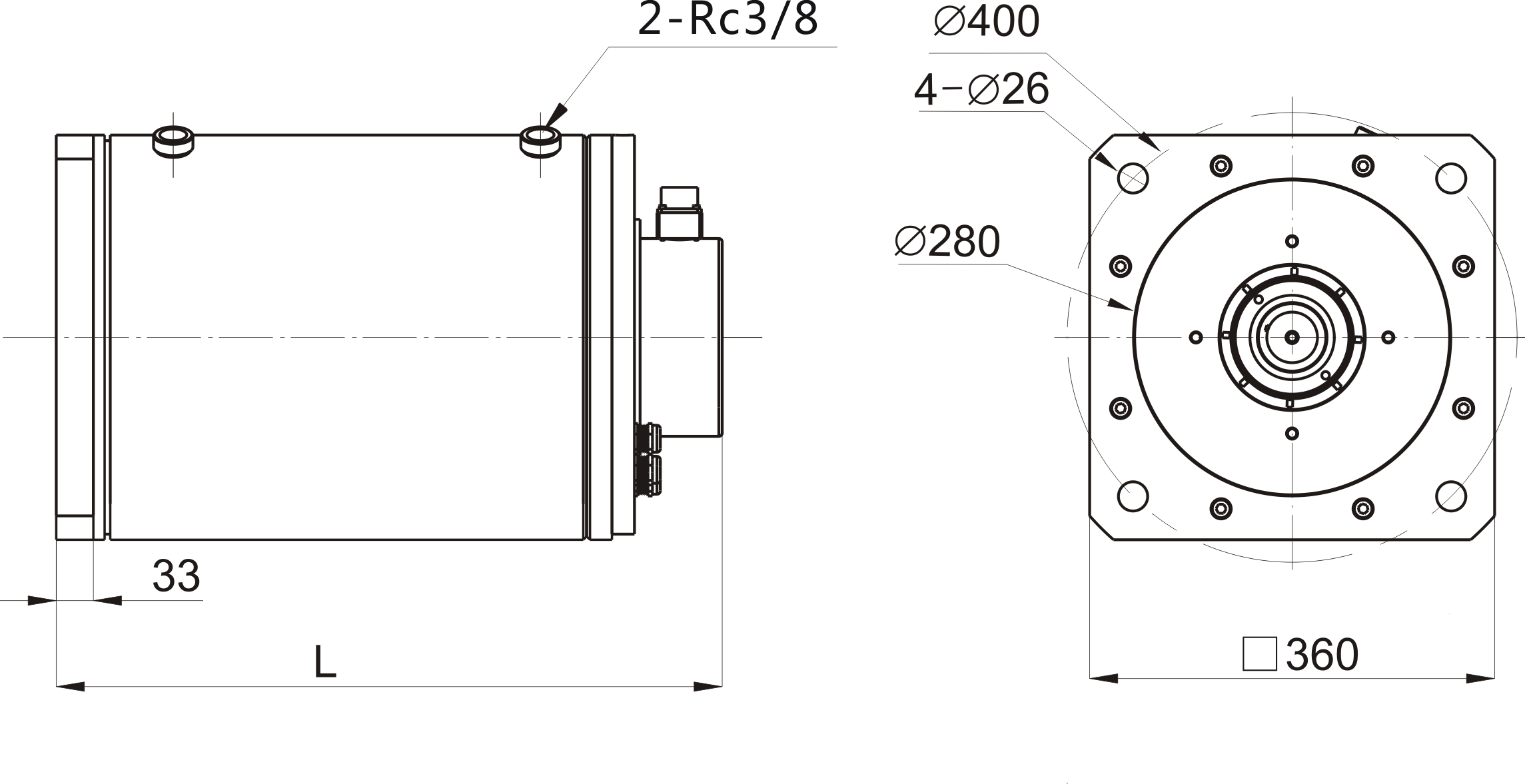

    UNITE:MM


  • Flame size 360mm (Direct driven low speed liquid cooling)

    Model

    Rated
      torque

    Rated
      voltage

    Rated
      speed

    Rated
      power

    Rated
      current

    Kt

    Ke

    Max.
     speed

    Max.
     torque

    Roter
      inertia

    Poles

    Weight

    L
      Length

    N.m

    Vac

    rpm

    kW

    A

    N.m/A

    V/krpm

    rpm

    N.m

    Kg.cm²

    Poles

    Kg

    mm

    360H37D35B

    1000

    380

    350

    37

    91

    12.2

    740

    400

    3000

    2060

    20

    190

    485

    360H55D35B

    1500

    380

    350

    55

    		136

    12.2

    740

    400

    4500

    3010

    20

    270

    590

    Motor insulation: class-H; Thermal protection: PTC100 with KTY optional; Protection grade: IP65 except terminal box;

    Wiring method:junction box; Cooling method: liquid cooling; working standard: long-term,S1    【V2.0】




  • 360,450mm servo motor (liquid cooling)
