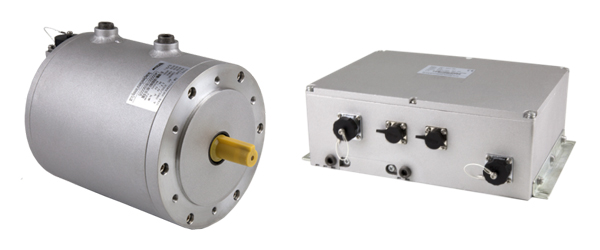

Air pump servo systems
Author: admin Viewed: 4295【Close】
2020-10-04 18:22:46
Synmot entered the field of fuel cell system in 2004, and participated in the development of the national 863 program in this field with Shanghai Shenli Technology, Dalian Institute of Physics and Tongji University
Advanced design
High-speed motor design technology, electromagnetic design technology, NVH analysis technology, mechanical structure design technology
Embedded chip software and hardware design technology, switching power supply design technology, IGBT drive design technology
High reliability
IP67 high protection level
Optimized design and material selection to ensure that it will never demagnetize
Comprehensive, high-level EMC test and withstand voltage test
Full specifications
Air pump: 6KW-15KW/1000RPM-20000RPM
Hydrogen pump: 1.5KW/8000RPM
ExperienceLong-term cooperation with Shenli Technology, Tongji University, Zhejiang University, Xinyuan Power, Wuhan Hydrogen and other units, has accumulated rich experience in designing and debugging high-speed motors

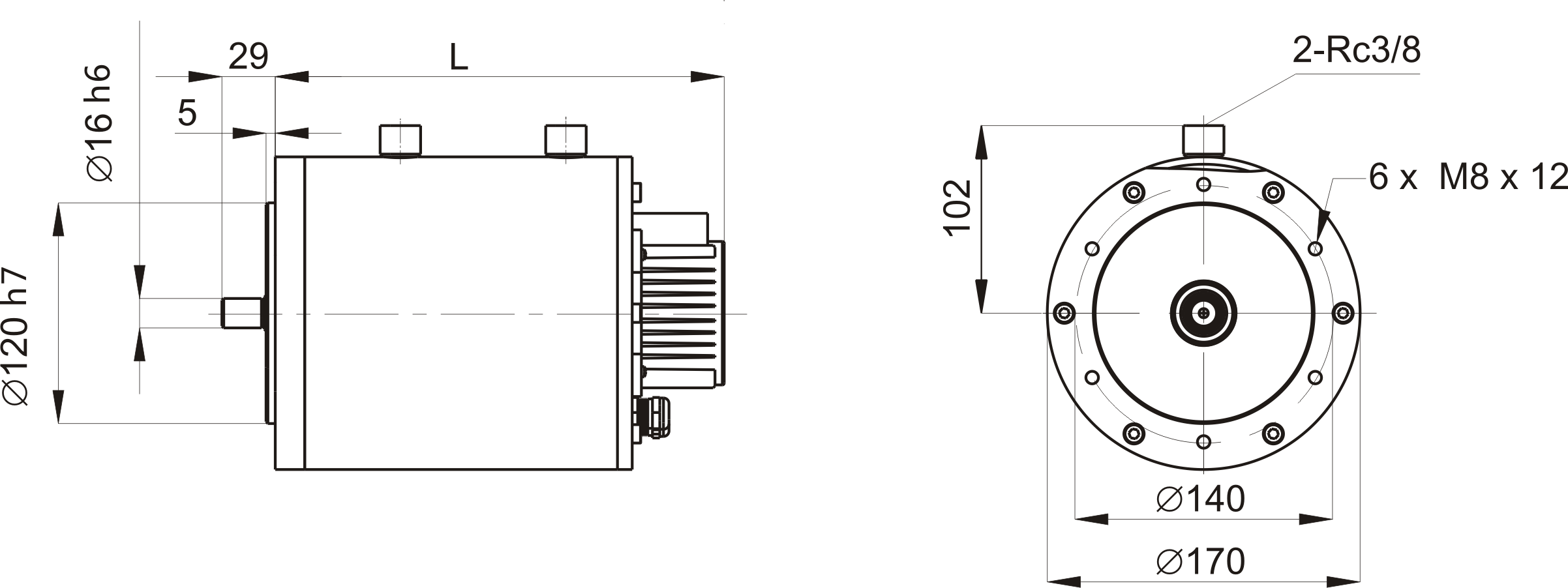

- 170mm Servo motor Parameters

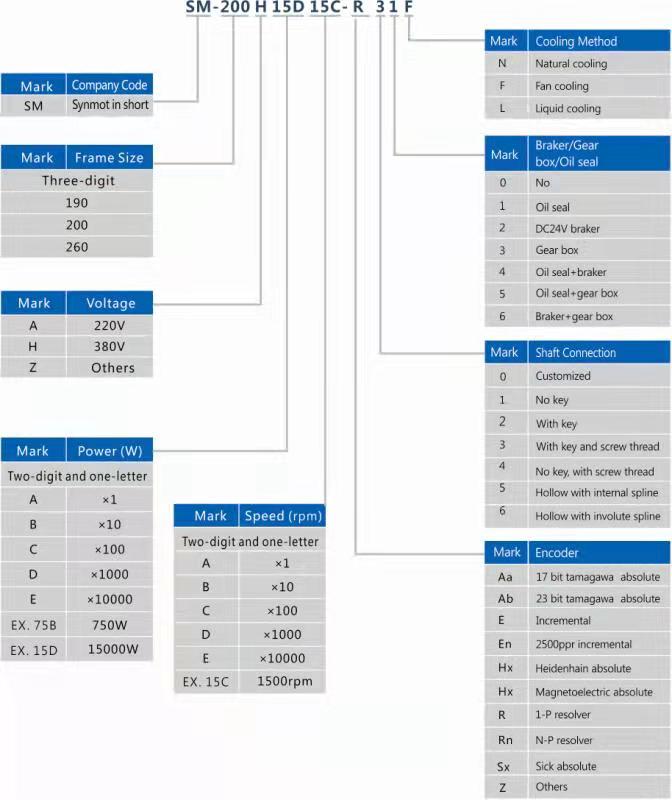

Motor model
Rated voltage（Vac）
Torque（Nm）
Rated speed (rpm)
Rated power(kW)
RLLResister
Pr_11 ParametersLd inductance
Pr_12 ParametersLq inductance
Pr_13 ParametersKe Back EMF
Pr_14 ParametersSM-170A9D12D-R41L
220
7.1
12000
9
13
350
700
120
SM-170A15D12D-R41L
220
12
12000
15
10
275
550
131
SM-170Z8D80C-R41L
220～380
9.5
8000
8
42
1340
2680
255

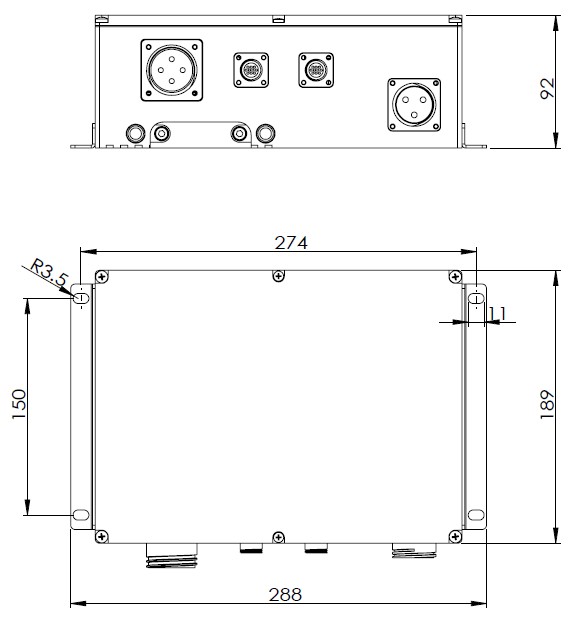

Servo drive parameters of air pump
Supply voltage range
(DC)Recommended supply voltage
(DC)output voltage
(AC)Rated output current
(arms)Output Power
(kW)Cooling method Protection Grade 450-720V 540V 0-380V 16A 6.0KW Water cooling (water temperature≤65℃) IP67 450-720V 540V 0-380V 19A 8.0KW Water cooling (water temperature≤65℃) IP67 450-720V 540V 0-380V 26A 12.0KW Water cooling (water temperature≤65℃) IP67 450-720V 540V 0-380V 32A 15.0KW Water cooling (water temperature≤65℃) IP67 450-720V 540V 0-380V 48A 22.0KW Water cooling (water temperature≤65℃) IP67 450-720V 540V 0-380V 71A 34.0KW Water cooling (water temperature≤65℃) IP67
