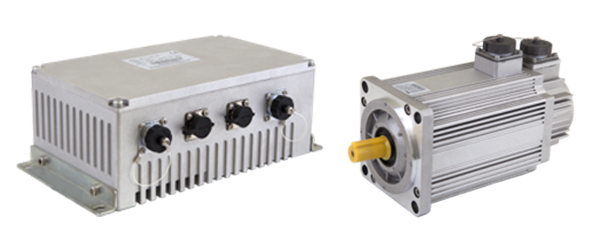

hydrogen pump servo systems
Author: admin Viewed: 4514【Close】
2020-10-04 17:23:46
Synmot entered the field of fuel cell system in 2004, and participated in the development of the national 863 program in this field with Shanghai Shenli Technology, Dalian Institute of Physics and Tongji University
Advanced design
High-speed motor design technology, electromagnetic design technology, NVH analysis technology, mechanical structure design technology
Embedded chip software and hardware design technology, switching power supply design technology, IGBT drive design technology
High reliability
IP67 high protection level
Optimized design and material selection to ensure that it will never demagnetize
Comprehensive, high-level EMC test and withstand voltage test
Full specifications
Air pump: 6KW-15KW/1000RPM-20000RPM
Hydrogen pump: 1.5KW/8000RPM
ExperienceLong-term cooperation with Shenli Technology, Tongji University, Zhejiang University, Xinyuan Power, Wuhan Hydrogen and other units, has accumulated rich experience in designing and debugging high-speed motors

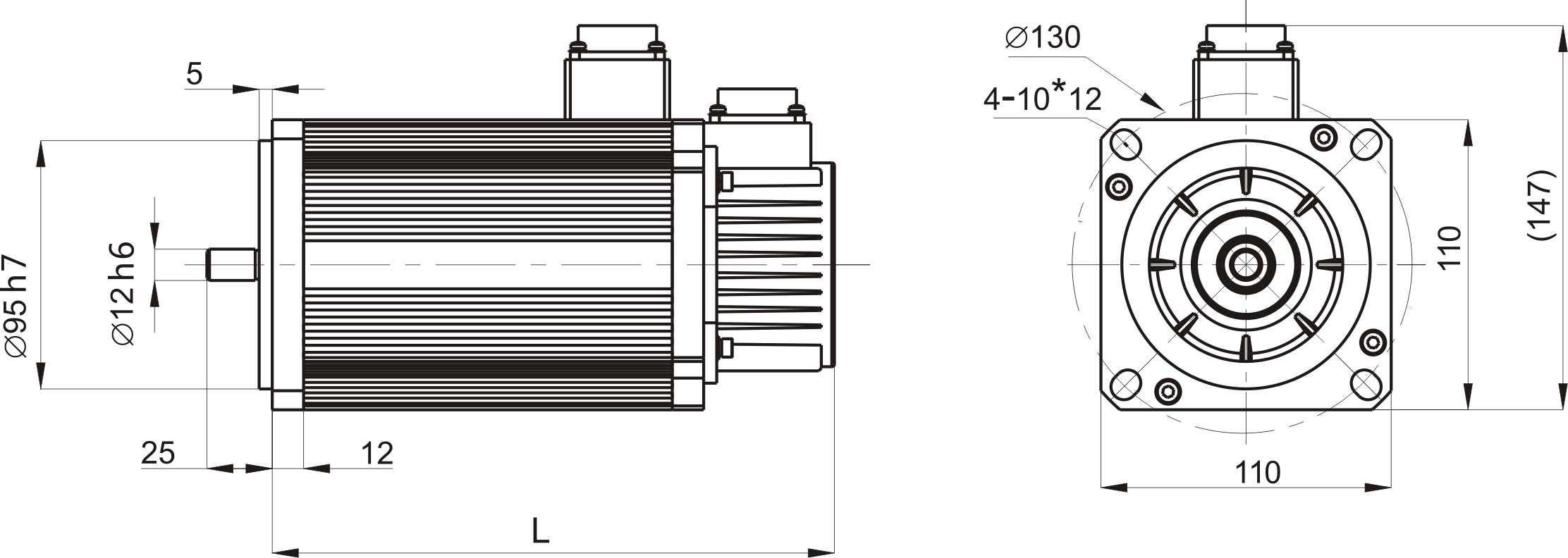

Servo Motor parameters of hydrogen pump

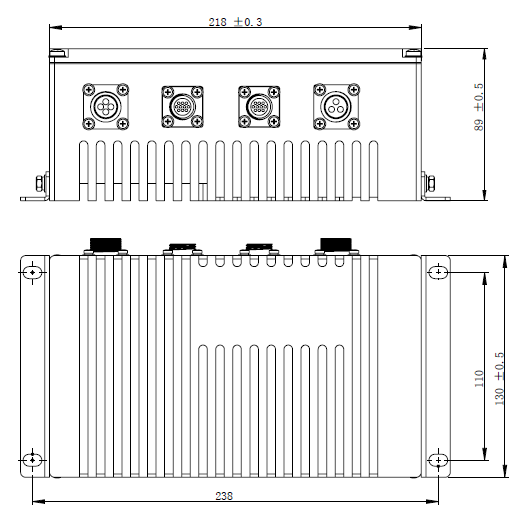

Servo drive parameters of hydrogen pumpMotor model Rated voltage（Vac） Rated current
（A）Torque（Nm） Rated speed(rpm) Rated power(kW) RLL Resistance
Pr_11 ParametersLd Inductance
Pr_12 ParametersLq Inductance
Pr_13 ParametersKe Back EMF
Pr_14 ParametersSM-110H15C70C-R41N 380 3.2 2.1 7000 1.5 505 2451 2599 484 Supply voltage range
(DC)Recommended supply voltage
(DC)output voltage
(AC)Rated output current
(arms)Output Power
(kW)Cooling method Protaction grade 450-720V 540V 0-380V 3.5A 1.5KW Natural cooling (ambient temperature is greater than 55℃, please derate to use) IP67 450-720V 540V 0-380V 5.5A 2.5KW Natural cooling (ambient temperature is greater than 55℃, please derate to use) IP67
