150mm（3kW-13kW）

2022-01-13 14:30:05 Author: admin Viewed: 3182【Close】

2022-01-13 14:30:05

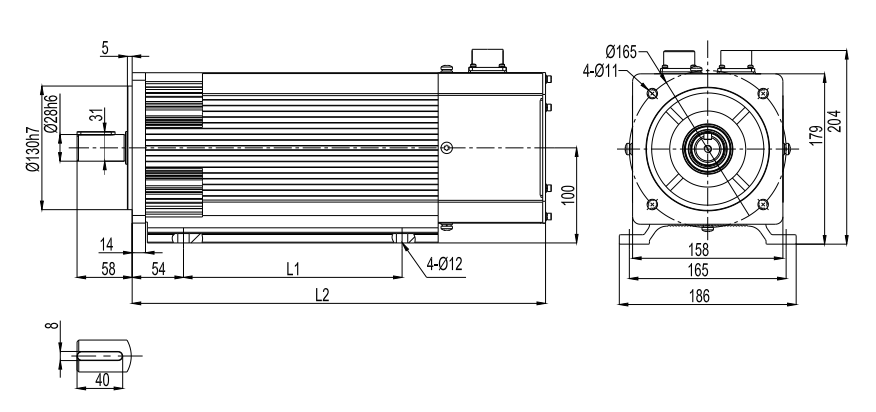

UNITE:MM

Flame size 150mm
Model	Rated Torque	Rated Voltage	Rated Speed	Rated Power	Rated Current	Kt	Ke	Max. Speed	Max. Torque	Rotor Inertia	Poles	Weight	L1	L2
Model	N.m	Vac	rpm	kW	A	N.m/A	V/krpm	rpm	N.m	Kg.cm²	poles	Kg	mm	mm
150H31C15C	20	380	1500	3.1	6.9	3.1	187	2000	60	24.9	10	16	70	275
150H40C20C	20	380	2000	4.2	8.8	2.4	147	2500	60	24.9	10	16	70	275
150H44C15C	28	380	1500	4.4	9.6	3.1	189	2000	84	33.5	10	20	100	305
150H60C20C	28	380	2000	5.9	12.2	2.5	149	2500	84	33.5	10	20	100	305
150H55C15C	35	380	1500	5.5	12.0	3.1	189	2000	105	42.2	10	24	130	335
150H75C20C	35	380	2000	7.3	15.2	2.5	149	2500	105	42.2	10	24	130	335
150H75C15C	48	380	1500	7.5	16.5	3.1	187	2000	143	56.6	10	30	180	385
150H10D20C	48	380	2000	10.0	20.9	2.4	148	2500	143	56.6	10	30	180	385
150H95C15C	60	380	1500	9.4	20.8	3.1	187	2000	180	71.0	10	35	230	435
150H13D20C	60	380	2000	12.6	26.4	2.4	147	2500	180	71.0	10	35	230	435

150
