200mm (15KW-36KW)
Author: admin Viewed: 6368【Close】
2017-06-27 14:06:43

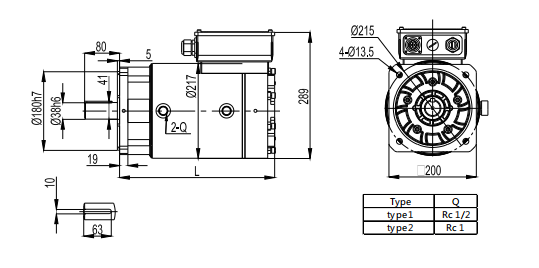

UNITE:MM
Flame size 200mmV2.3 Model Rated
TorqueRated
VoltageRated
SpeedRated
PowerRated
CurrentKt Ke Max.
SpeedMax.
TorqueRotor
InertiaPoles Weight Length N.m Vac rpm kW A N.m/A V/krpm rpm N.m Kg.cm² poles Kg mm 200H11D15C 72 380 1500 11 25 3.2 192 2000 216 88 8 33 295 200H13D17C 72 380 1700 13 29 2.8 169 2300 216 88 8 33 295 200H15D20C 72 380 2000 15 33 2.4 146 2500 216 88 8 33 295 200H15D15C 96 380 1500 15 34 3.1 189 2000 288 109 8 37 355 200H17D17C 96 380 1700 17 38 2.8 169 2300 288 109 8 37 355 200H20D20C 96 380 2000 20 44 2.4 144 2500 288 109 8 37 355 200H18D15C 118 380 1500 19 40 3.2 196 2000 354 130 8 48 355 200H21D17C 118 380 1700 21 46 2.8 171 2300 354 130 8 48 355 200H25D20C 118 380 2000 25 54 2.4 147 2500 354 130 8 48 355 200H22D15C 141 380 1500 22 48 3.3 198 2000 423 160 8 57 435 200H25D17C 141 380 1700 25 54 2.9 175 2300 423 160 8 57 435 200H30D20C 141 380 2000 30 62 2.5 153 2500 423 160 8 57 435 200H27D15C 170 380 1500 27 56 3.3 201 2000 510 187 8 68 435 200H30D17C 170 380 1700 30 65 2.9 174 2300 510 187 8 68 435 200H36D20C 170 380 2000 36 73 2.6 156 2500 510 187 8 68 435 电机绝缘等级：H；热保护：PT100，KTY可选；防护等级：IP65（接线盒部位除外）；接线方式：接线盒；冷却方式：液冷;工作制：S1
