110mm(1.5KW) （V2.0）

Author: admin Viewed: 6156【Close】

2017-08-22 11:20:52

  •

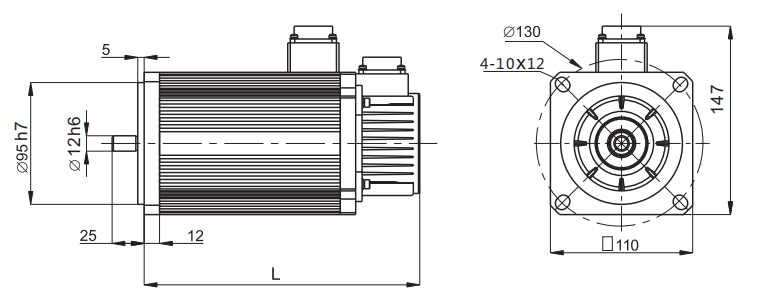

    UNITE:MM



  • Flame size 110mm (High speed)

    Model

    Rated
      torque

    Rated
      voltage

    Rated
      speed

    Rated
      power

    Rated
      current

    Kt

    Ke

    Max.
     speed

    Max.
     torque

    Roter
      inertia

    Poles

    Weight

    L
      Length

    N.m

    Vac

    rpm

    kW

    A

    N.m/A

    V/krpm

    rpm

    N.m

    Kg.cm²

    Poles

    Kg

    mm

    110H15C70C

    2.1

    380

    7000

    1.5

    3.2

    0.8

    46.7

    8000

    6.2

    3.5

    4

    11

    215

    110H15C80C

    1.8

    380

    8000

    1.5

    3.1

    0.7

    41.1

    9000

    5.4

    3.5

    4

    11

    215

    Motor insulation: class-H; Thermal protection: PTC100 with KTY optional; Protection grade: IP65;

    Wiring method:terminal block, Cooling method: natural cooling; Working standard: long-term, S1     【V2.0】
